Sensor Tag Specs

Battery type

Battery life

  • 2 to 85 months depending usage and setting. Battery life degrades at below freezing temperatures.

Range

  • 700ft (210m) line of sight, 5ft from ground, default setting.

Beeper sound level

  • 75dBA at 10cm

Temperature

  • Operation range: -40°C (-40°F) to 85°C (185°F), non-condensing (0-95% RH)
Regular 13-bit Pro, Pro ALS

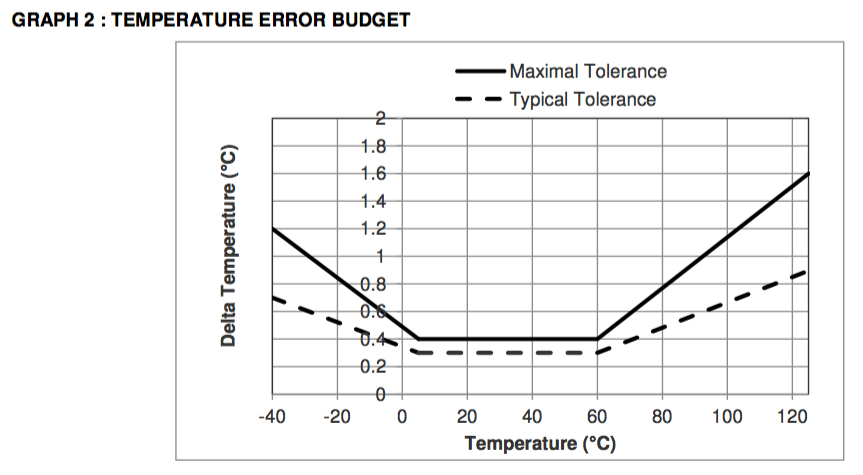

Accuracy+/-1°C typical error after manual calibration+/-0.4°C max
(error vs. temperature)
+/-0.4°C max
(error vs. temperature)
Resolution0.125°C (0.225°F)0.02°C (0.036°F)0.02°C (0.036°F)
Enhanced Monitoring-AvailableAvailable
Pre-installed batteryEnergizer CR2032 (-30°C~60°C)
Storage while out of rangeNoneNone8192 point of temperature/RH or 5460 point of temperature/RH/Lux
Cloud storage while in rangeunlimitedunlimitedunlimited

Relative Humidity (available in 13-bit and Pro variant)

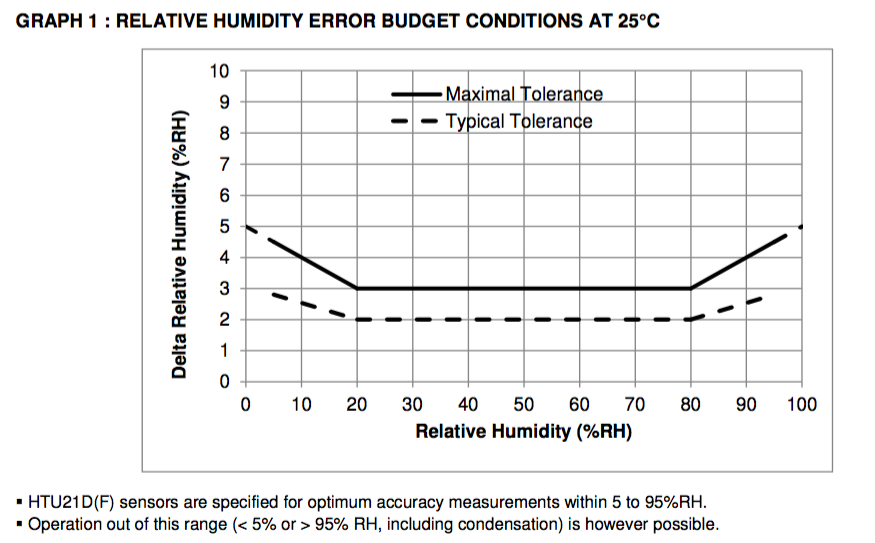

  • +/-2% RH error (Error budget chart), 10-bit resolution (0.12% step)
  • Logging and notification

Ambient Light (in ALS variant)

  • 0.1 lux to 200,000 lux range, variable resolution that scales with light level (log-scale sensor)
  • Logging and notification

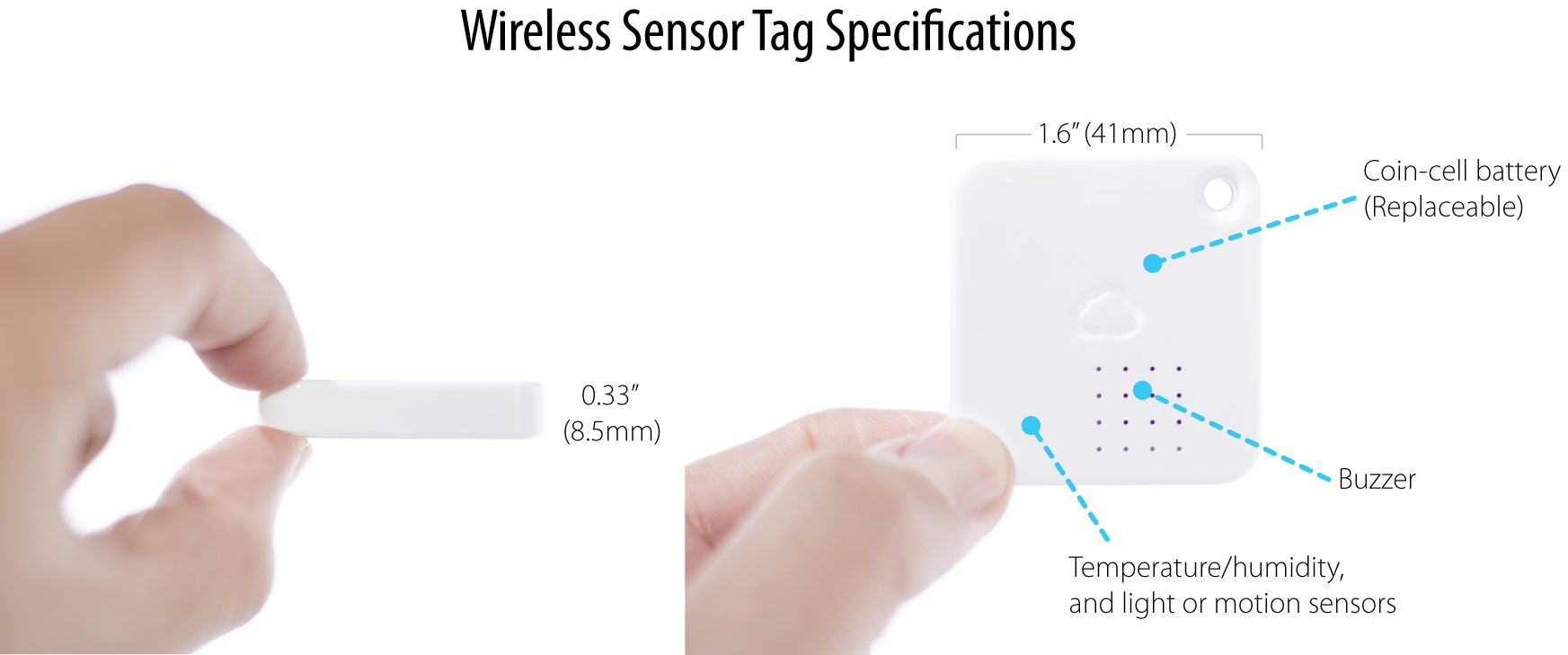

Size and weight

  • Height: 1.7 inch (44 mm)
  • Width: 1.6 inch (41 mm)
  • Thickness: 0.33 inch (8.5 mm)
  • Weight: 0.5 oz (15 g)

FCCID: ZGW05. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

CE certificate | CE certificate & all test reports

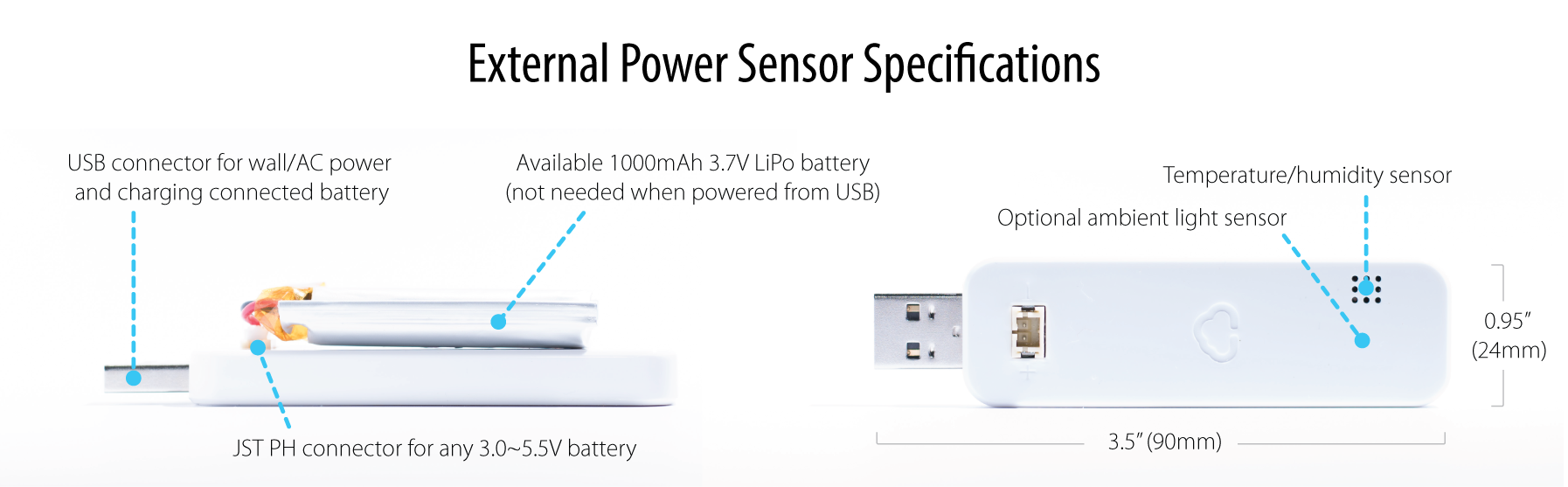

External Power Sensor Specs

Battery type

  • Any battery with voltage between 3.0V to 5.5V, with JST PH connector (examples).
  • None needed when USB is connected. Operational while charging connected lithium-poly battery from USB (4 hour to complete charge for 1000mAh size.)

Battery life

  • When 1000mAh LiPo battery is used, 4x that of regular Wireless Sensor Tag.

Feature Comparison

Basic Precision
Temperature accuracy +/-0.4°C max
(error vs. temperature)

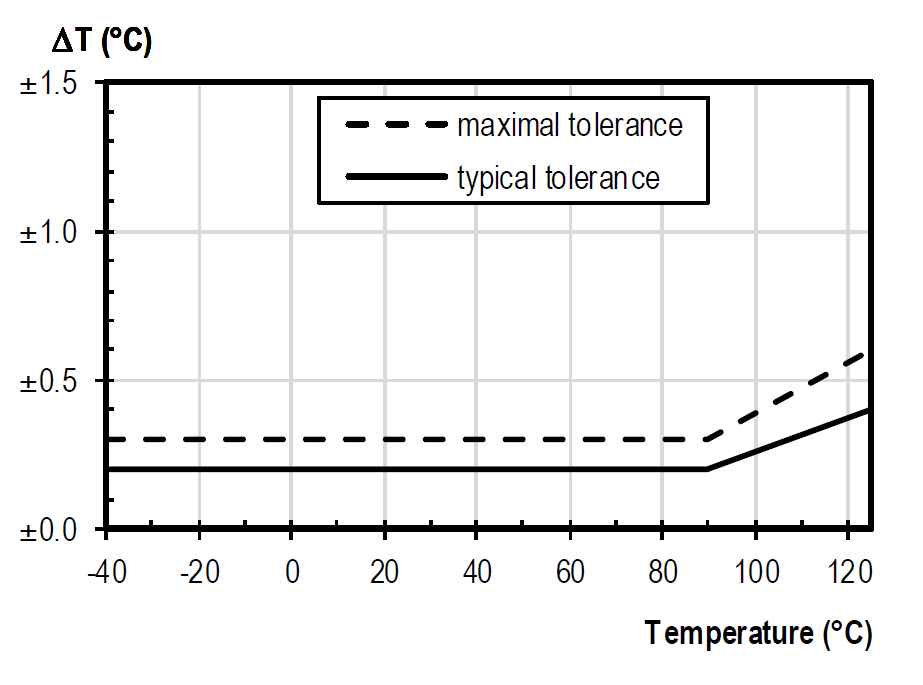

+/-0.3°C max
(error vs. temperature)
Temperature resolution0.02°C (0.036°F)0.015°C (0.027°F)
Enhanced Temperature MonitoringAvailableAvailable

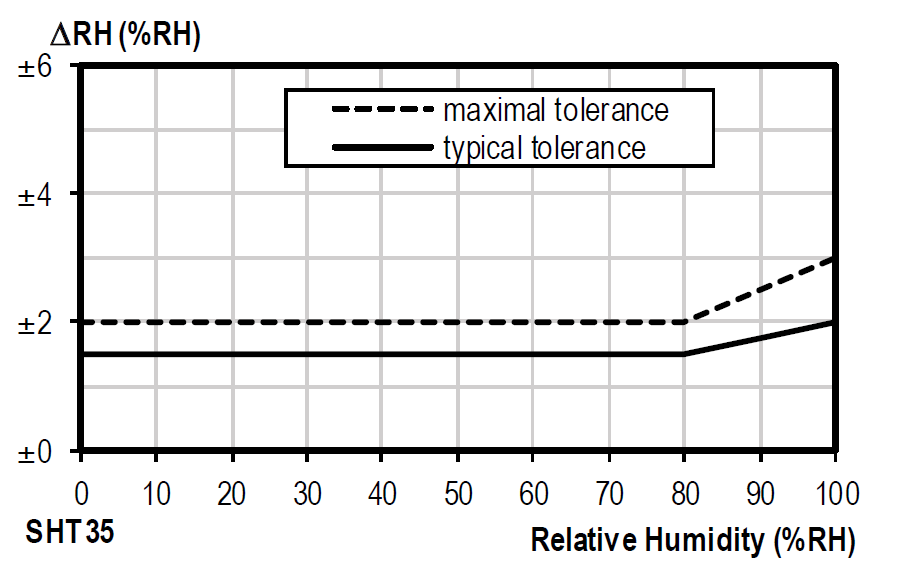

Humidity accuracy +/-2% typical, +/-3% max
(error budget chart)
+/-1.5% typical, +/-2% max
(error budget chart)
Humidity resolution0.12%0.01%

Ambient Light (in ALS variant)

  • 0.1 lux to 200,000 lux range, variable resolution that scales with light level (log-scale sensor)
  • Logging and notification

Modes of Operation

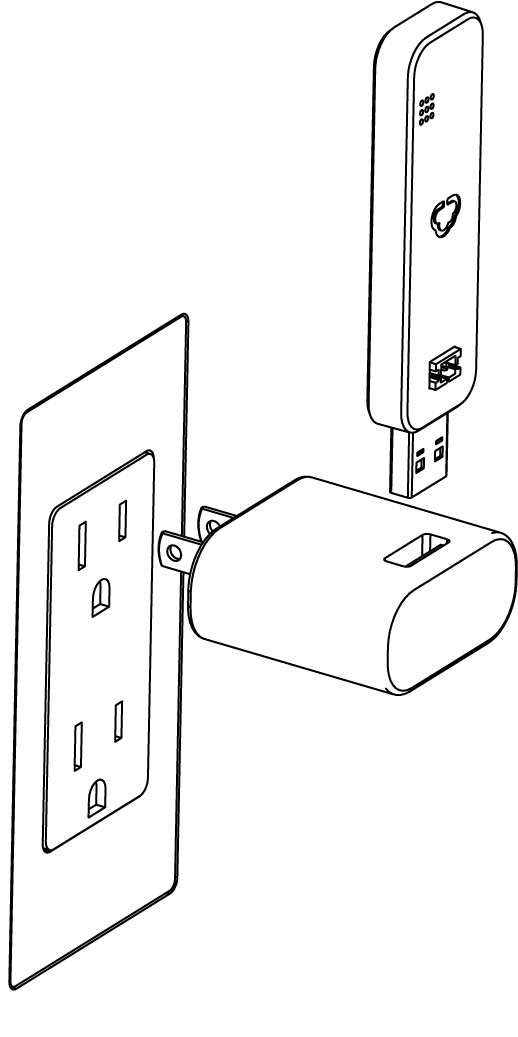

Plugged in

Plug in to USB wall charger, or any USB connector such as computer or USB hub for maintenance free operation.

Because configuration are stored in non-volatile memory, sensor will resume normal operation immediately after power is restored (by connecting the USB or battery.)



Battery

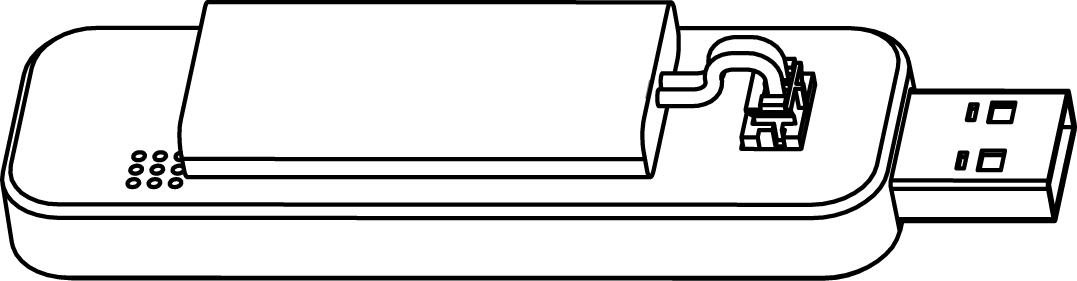

Connect a 3.7V lithium poly (Li-Po) rechargeable battery or battery holders (such as 3x AAA) with JST PHR connector. Because there are a wide variety of batteries with different capacity and exterior size to choose from, you can find the best trade-off between battery life and physical size for each individual mission.

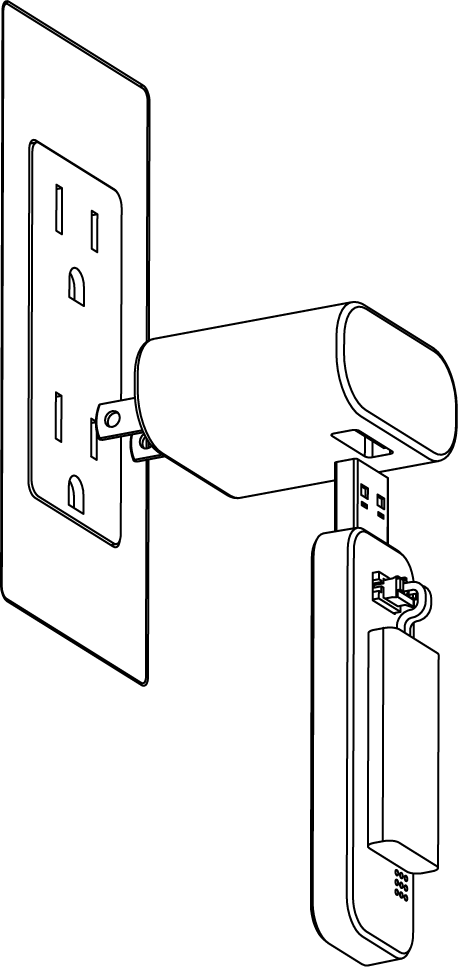

Recharge

When connected battery is low, simply plug in the USB. The built in battery charger IC will quicly charge attached single-cell Li-Po battery pack in just a few hours (for typical battery pack). No need to pull out / exchange battery.

Indicator Lights

Blue flash Indicates successful upload of temperature/humidity/light data-point or storage to internal non-volatile memory in offline mode.
Red or orange flash Indicates failed transmission of data-point, or that internal non-volatile memory is full and data point cannot be stored in offline mode.
Alternating blue/red flash /The sensor tag is not associated with any Tag Manager, and is ready to respond to search / associate command from any nearby Tag Manager.

Storage while out of range

16312 point of temperature/humidity, or 8156 point of lux/temperature/humidity in non-volatile memory (NVM). Data will not be lost when USB or battery is removed.

Cloud storage while in range

Unlimited

Range

  • 700ft (210m) line of sight, 5ft from ground, default setting.

Size and weight

  • Length: 3.5 inch (90 mm)
  • Width: 0.95 inch (24 mm)
  • Thickness: 0.33 inch (8.4 mm)
  • Weight: 0.5 oz (15 g) w/o battery, 1.1 oz (32g) with optional 1000mAh LiPo battery

Operation Environment

  • -40°C (-40°F) to 85°C (185°F)
  • non-condensing (0-95% RH), indoor use only.

FCCID: ZGW15. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

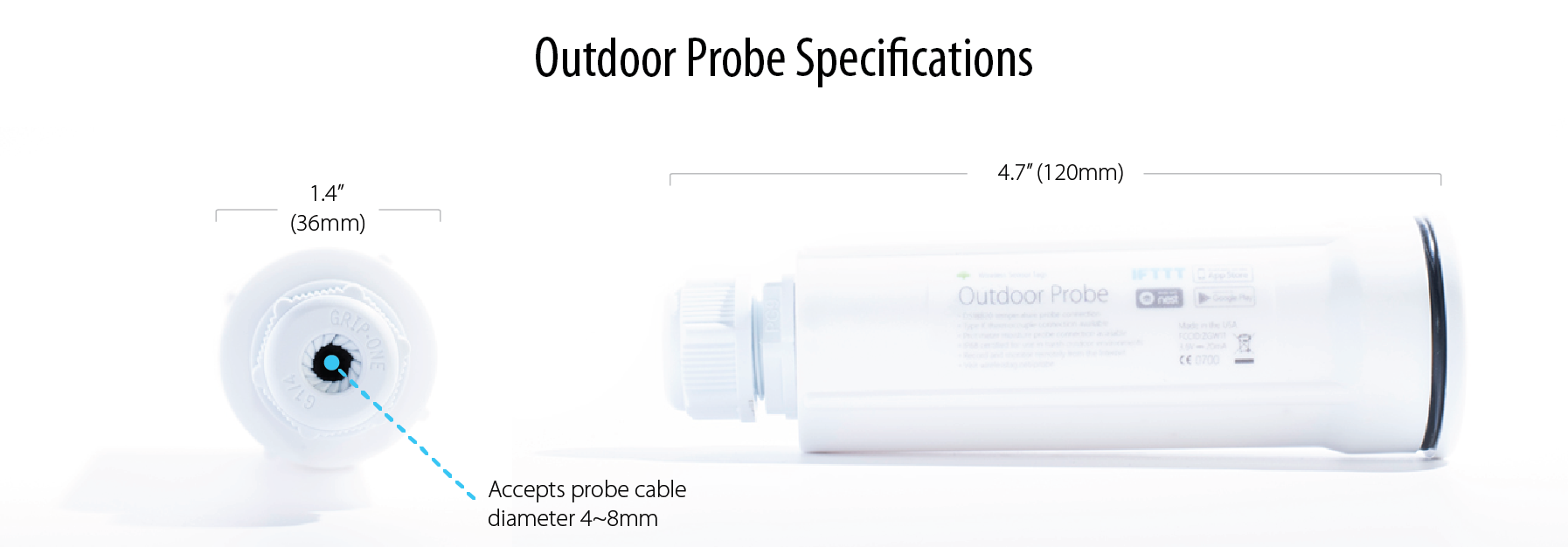

Ourdoor Probe Specs

Battery type

  • 1/2 AA, 3.6V x1

Battery life

  • 5 years (typical)

Range

  • 700ft (210m) line of sight, 5ft from ground, default setting.

Features

  • Operation range: -40°C (-40°F) to 85°C (185°F) body portion, -50°C (-67°F) to 125°C (257°F) DS18B20 probe. Completely water-proof.
Basic Thermocouple Protimeter
DS18B20 accuracy, resolution+/-0.5°C, 0.0625°C+/-0.5°C, 0.0625°C*+/-0.5°C, 0.0625°C*
k-Type thermocouple accuracy, resolutionN/A+/-0.5°C, 0.03125°CN/A
Internal temperature accuracy, resolutionN/A+/-0.5°C, 0.03125°C+/-0.5°C, 0.03125°C
Wood Moisture Equivalent (WME)N/AN/A6% - 70% variable resolution (16-bit)
Enhanced MonitoringAvailable (for DS18B20)Available (for DS18B20 or thermocouple)Available (for DS18B20 or WME)
Storage while out of range16384 point of external temperature8192 point of external/internal temperature8192 point of WME/internal temperature
Cloud storage while in rangeunlimitedunlimitedunlimited
* Can switch between DS18B20 and thermocouple/Protimeter probe, not both concurrently.

Size and weight

  • Length (without probe): 4.7 inch (120 mm)
  • Diameter: 1.4 inch (36 mm)
  • Weight: 2.1~2.2 oz (60~63 g) depending on option

FCCID: ZGW11. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

CE certificate | CE certificate & all test reports

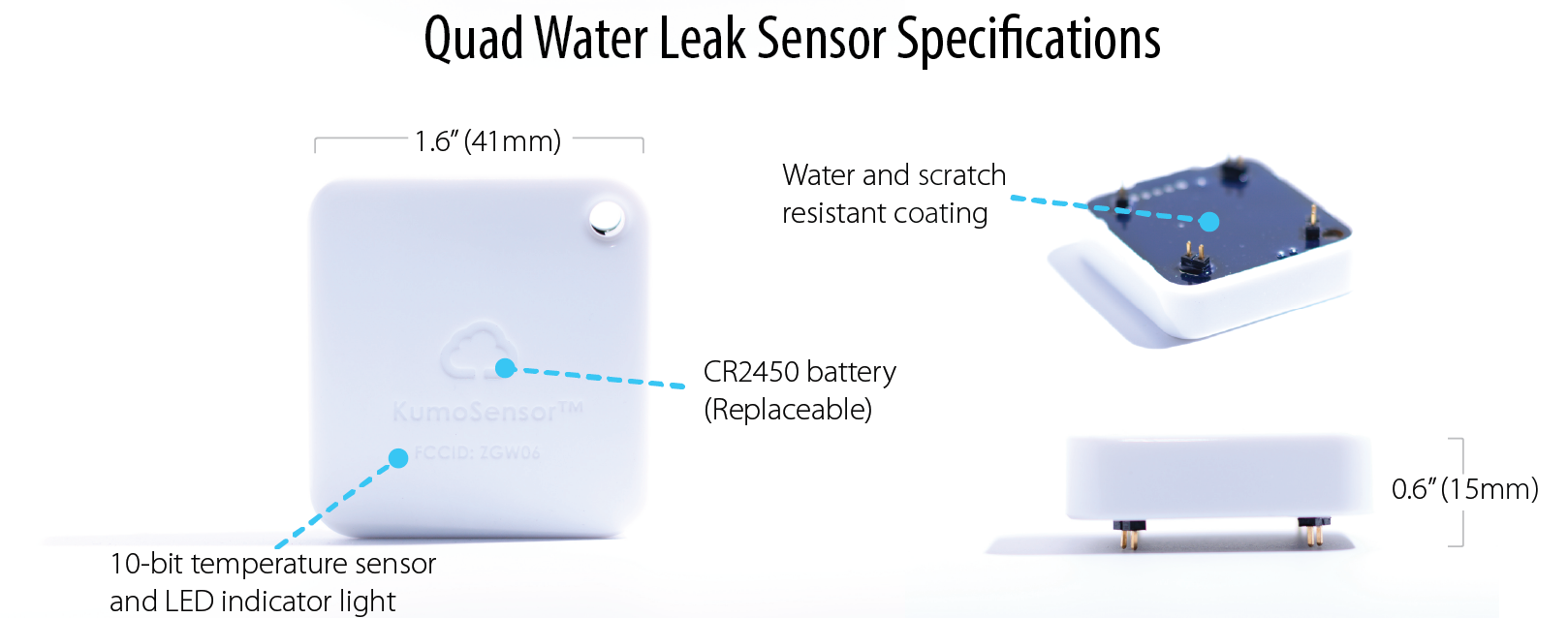

Quad Leak Sensor Specs

Battery type

  • CR2450 (replaceable)

Battery life

  • 3 years (typical)

Range

  • 700ft (210m) line of sight (at default setting.)

Water Leak Detectors

  • Gold plated, standard 0.1'' header, detection thresholds: 1MΩ, 2MΩ, 10MΩ and 20MΩ, each programmable to a low sensitvity mode, one can be programmed to receive analog voltage input.

Temperature

  • Operation range: -40°C (-40°F) to 85°C (185°F)
  • Sensor accuracy: +/-1°C typical, -2/+4°C max
  • Sensor quantization level (resolution): 10-bit, 0.2°C (0.4°F)
  • Logging and notification

Size and weight

  • Height: 1.7 inch (44 mm)
  • Width: 1.6 inch (41 mm)
  • Thickness: 0.44 inch (11 mm)
  • Weight: 0.6 oz (18 g)

FCCID: ZGW06. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

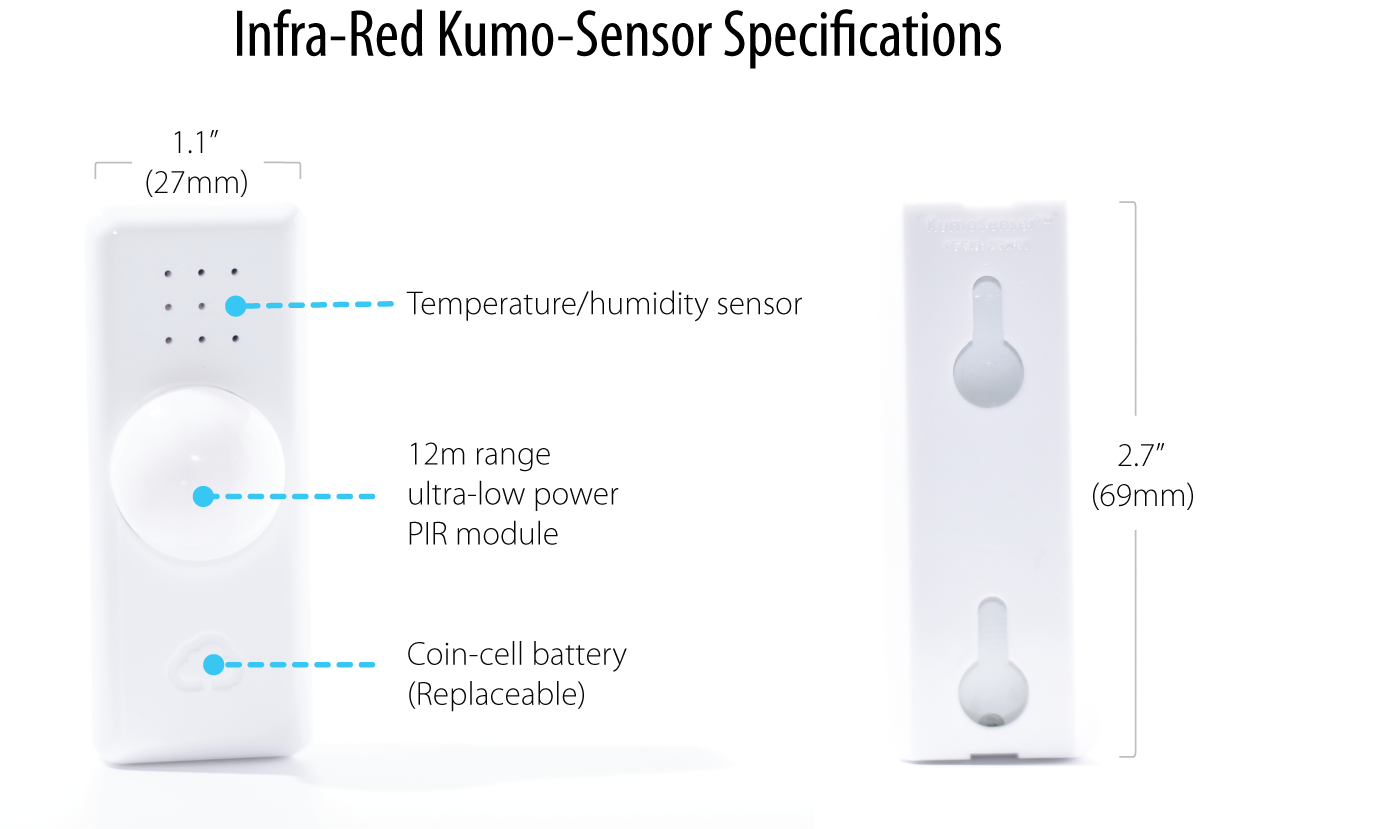

PIR KumoSensor Specs

Battery type

  • CR2450 x1

Battery life

  • 2 years (typical)

Range

  • 400ft (120m) line of sight (at default setting.)

Passive Infra-Red Motion Sensor

  • 12 meter range, field of view: 102° x 92°

Relative Humidity

  • +/-2% RH error (Error budget chart), 10-bit resolution (0.12% step)
  • Logging and notification

Temperature

  • Operation range: -40°C (-40°F) to 85°C (185°F), non-condensing (0-95% RH)
  • Sensor accuracy: +/-0.4°C max (Error budget chart)
  • Sensor quantization level (resolution): 13-bit, 0.02°C step
  • Logging and notification

Dimensions

  • Height: 1.0 inch (26 mm)
  • Width: 1.1 inch (27.6 mm)
  • Length: 2.7 inch (68.6 mm)

FCCID: ZGW08. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

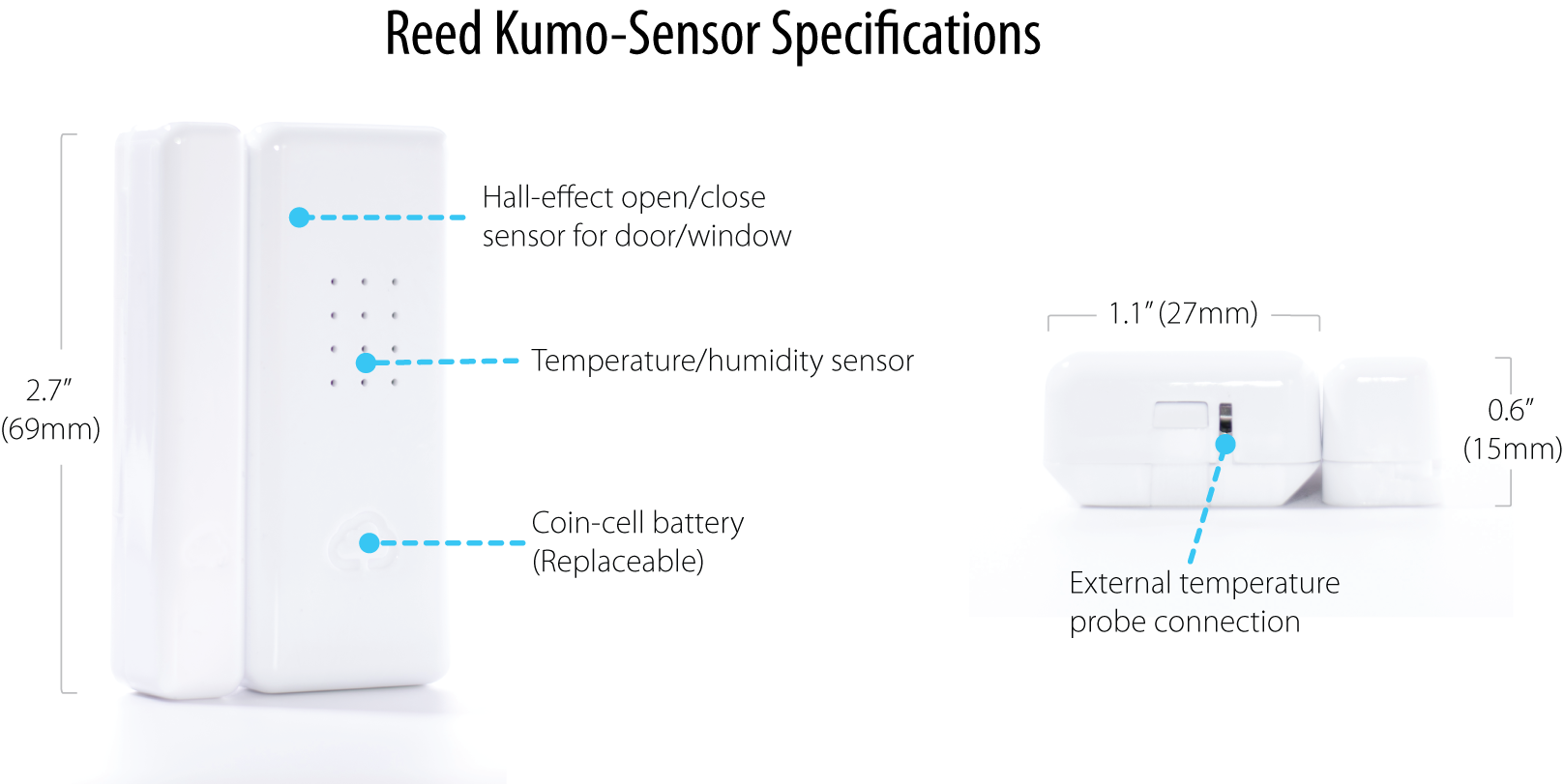

Reed KumoSensor Specs

Battery type

  • CR2450 x1

Battery life

  • 3 years (typical)

Range

  • 700ft (210m) line of sight (at default setting.)

Relative Humidity

  • +/-2% RH error (Error budget chart), 10-bit resolution (0.12% step)
  • Logging and notification

Temperature

  • Operation range: -40°C (-40°F) to 85°C (185°F), non-condensing (0-95% RH)
  • Sensor accuracy: +/-0.4°C max (Error budget chart)
  • Sensor quantization level (resolution): 13-bit, 0.02°C step
  • Logging and notification

Dimensions

  • Height: 0.6 inch (15.4 mm)
  • Width: 1.1 inch (27.6 mm)
  • Length: 2.7 inch (68.6 mm)

FCCID: ZGW07. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

Tag Manager Specs

Size and weight

  • Height: 0.89 inch (22 mm)
  • Width: 2.15 inch (55 mm)
  • Depth: 1.88 inch (48 mm)
  • Weight: 1.9 oz (55 g) w/o AC adapter

Operation Range

  • -40°C (-40°F) to 85°C (185°F)
  • non-condensing (0-95% RH)

Connects

Up to 40 of any combinations of:

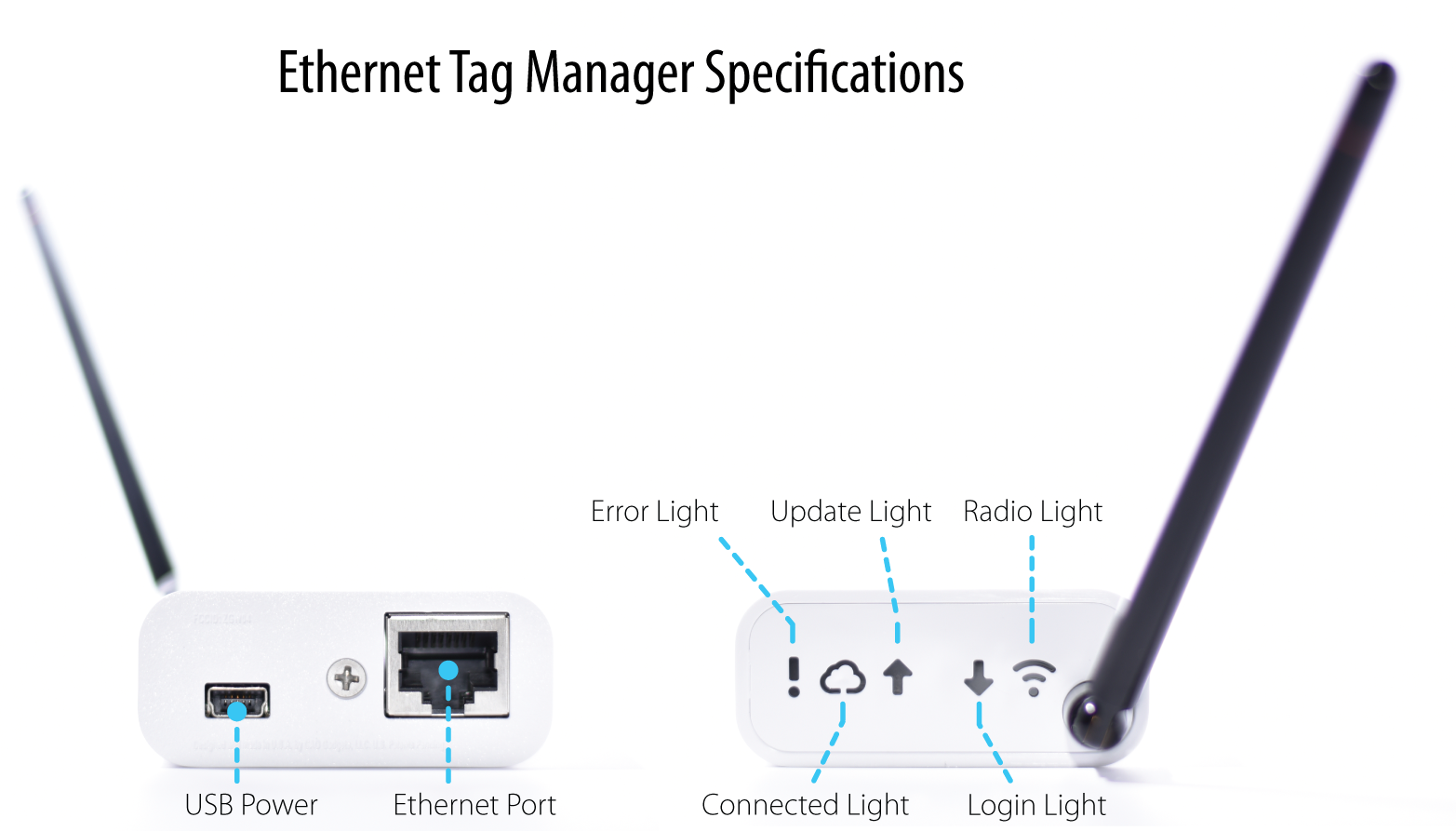

Indicator lights

Error light. Flashes when trying to configure itself to connect to the Internet (when acquiring IP address through DHCP). Rapidly flashes when trying to connect to web service.
Connected light. Lights up when connected to the cloud based web service.
Update light. Flashes when forwarding a Wireless Sensor Tag reading to the web service.
Login light. Lights up when connection is temporarily interrupted (when trying to re-connect to the web service)
Radio light. Gradually ramps up and down when radio is ready to receive sensor tag readings. Becomes solid when radio is transmitting a command to Wireless sensor tags.

Ethernet port

  • 10Base-T
  • Requires DHCP server (Most routers/modems typically support DHCP)
  • Firewall must allow outgoing HTTP (port 80) and port 6667 connection

AC adapter (included)

  • 100V~240V input 50/60Hz
  • US, EU or UK type depending on shipping address
  • 5V output
  • 300mA max current

User interface

Notification

  • Email
  • Twitter
  • Apple Push Notification service on iPhone/iPad
  • Push notification on Android devices
  • 12 kinds of IFTTT triggers

Bandwidth requirements

  • 660 byte upload (TX) per event (typical)
  • 401 byte download (RX) per event (typical)
  • "event" refers to motion events and each logged temperature data point (occurs at your configured auto-update interval)
  • 601 byte upload (TX) and 402 byte download (RX) per tag manager ping (once every 5 minutes)

FCCID: ZGW04. FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

CE certificate | CE certificate & all test reports
